K5V Series
Illuminated Tact Switch

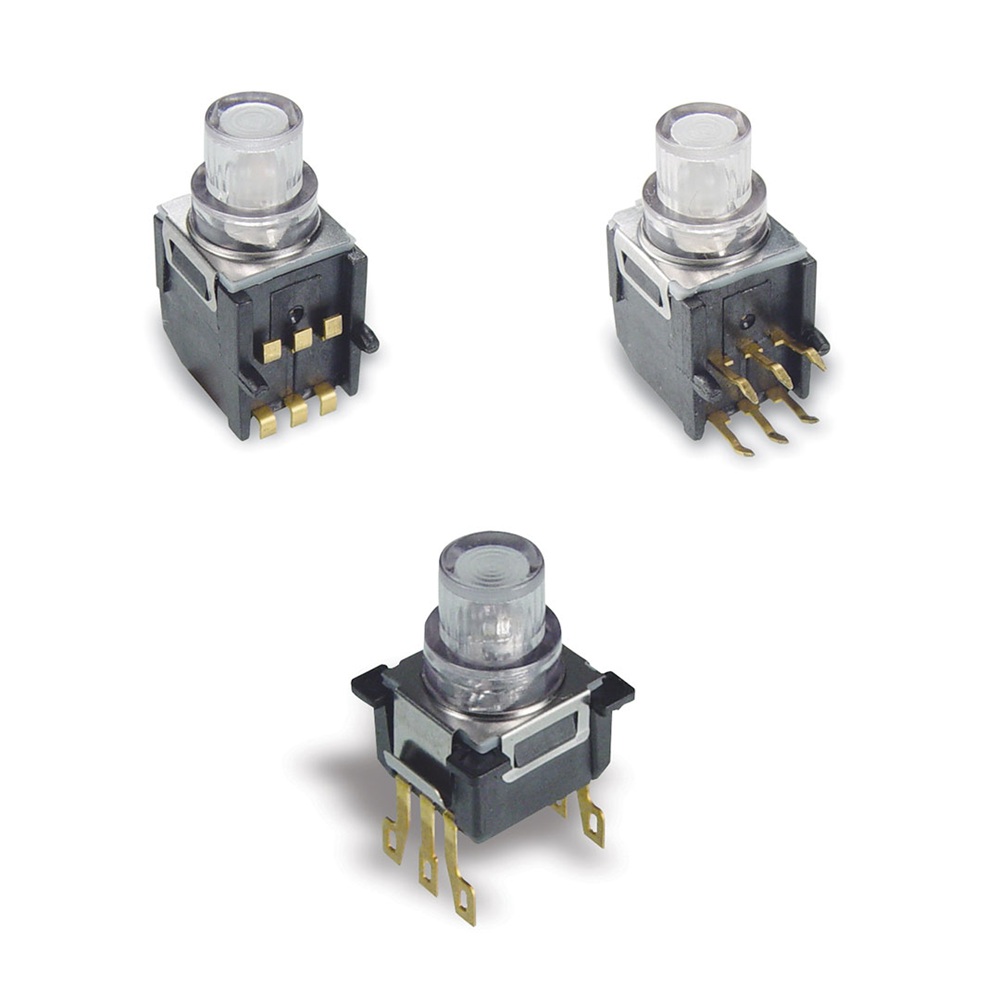

Tactile K5V product image

Image shown represents the product series and may not indicate the actual part number

C&K’s K5V series illuminated tact switch comes with high, bright LEDs that are able to meet customization requirements. With its reduced space usage on board – and excellent ergonomics – the K5V is perfect for network infrastructure, automotive and medical applications.

Features and Benefits

  • Reduced space usage on board
  • Excellent ergonomics
  • High bright leds

Typical Applications

  • Network infrastructure
  • Automotive
  • Medical

Specifications

  • Solderability:

    SMT: Compatible with the lead free soldering profile; THT: Compatible with the lead free soldering profile; PM: Low wattage soldering iron (25-50 watts max), solder time 3 seconds max

  • Contact Resistance:

    < 150 milliohms

  • Insulation Resistance:

    > 1000 megohms

  • Electrical Life:

    25,000 cycles

  • Operating Temperature:

    -40°C to 85°C

  • Contact Rating:

    100mA

= Most Common

Part Number
Current Rating Circuit Mounting Type Sealing Illumination Switch Function Electrical Life Cycles Actuator Type Actuator Height off PCB, from Pins Actuator Orientation Termination Style Footprint Illumination Voltage (Nominal) Illumination Type, Color Operating Force Additional Features Packaging
100mA @ 32VDC SPDT Panel Mount Sealed - IP40 Yes On-Mom 25,000 Translucent 13.35mm Top Actuated Solder Lug 9.70mm x 8.50mm LED, Blue 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25,000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, Blue 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25,000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, Green 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25,000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, Red 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25,000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, Red/Green 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25,000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, Green/Yellow 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25,000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, Yellow 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Surface Mount, Right Angle Sealed - IP40 Yes On-Mom 25,000 Translucent 12.40mm Side Actuated Gull Wing 9.45mm x 8.00mm LED, Green 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Surface Mount, Right Angle Sealed - IP40 Yes On-Mom 25,000 Translucent 12.40mm Side Actuated Gull Wing 9.45mm x 8.00mm LED, White 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Surface Mount, Right Angle Sealed - IP40 Yes On-Mom 25,000 Translucent 12.40mm Side Actuated Gull Wing 9.45mm x 8.00mm LED, Green/Yellow 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25,000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, White 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Panel Mount Sealed - IP40 Yes On-Mom 25,000 Translucent 13.35mm Top Actuated Solder Lug 9.70mm x 8.50mm LED, Yellow 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Panel Mount Sealed - IP40 Yes On-Mom 25,000 Translucent 13.35mm Top Actuated Solder Lug 9.70mm x 8.50mm LED, Green/Yellow 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25,000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, Green/Yellow Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 No/None On-Mom 25,000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25,000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, Green 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25,000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, Red 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25,000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, White 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25,000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, Yellow 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Panel Mount Sealed - IP40 Yes On-Mom 25,000 Translucent 13.35mm Top Actuated Solder Lug 9.70mm x 8.50mm LED, White 400gf Tactile Feedback Bulk
