Tactile

KSC PF Series
Sealed Tact Switch for SMT

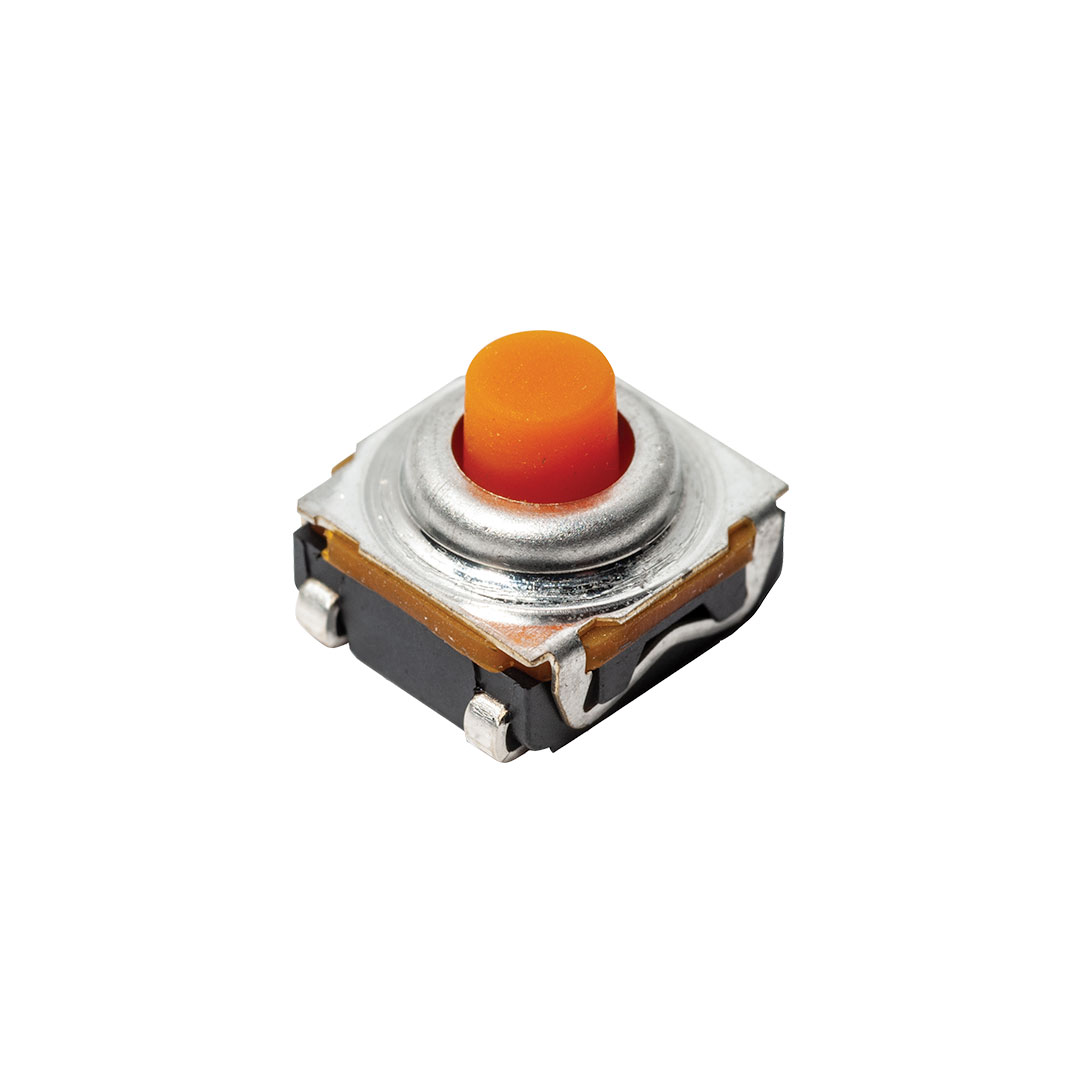

Tactile KSC PF product image

Image shown represents the product series and may not indicate the actual part number

img description

Toolbox

img description

Downloads

Contact Tech Support

Search Distributor Stock

Request Sample

The KSC PF series is a unique combination of the a compact form factor (6.2 x 6.2 x 5.2mm) SMT soft actuator tact switch with the potting friendly extended cage perfectly suited for medical, automotive and industrial applications.

Features and Benefits

Extended Cage for easy potting
Soft actuator 5,2mm high
IP67

Typical Applications

Automotive openings
Electrosurgical Tools

Specifications

Electrical Life:
Between 300,000 and 1,000,000 cycles depending on model
Solderability:
Lead free reflow soldering process according with IEC61760-1
Contact Rating:
50mA
Insulation Resistance:
> 10 megohms
Operating Temperature:
-40°C to 85°C
Contact Resistance:
< 100 milliohms
Dielectric Strength:
> 250 Vrms

Most Common

Current Rating

Circuit Group

Circuit

Mounting Type Group

Mounting Type

Sealing

Illumination

Switch Function

Electrical Life Cycles

Actuator Type

Actuator Height off PCB, from Pins

Actuator Orientation

Termination Style

Footprint

Illumination Voltage (Nominal)

Illumination Type, Color

Operating Force

Additional Features

Packaging

Reset All

= Most Common

1
of
1

Compare Selected Parts

Part Number
KSC421G 70SH LFS PF 3D Model \| Tech Support \| Check Stock Request Sample
KSC421J 70SH LFS PF 3D Model \| Tech Support \| Check Stock Request Sample
KSC422G 70SH LFS PF 3D Model \| Tech Support \| Check Stock Request Sample
KSC422J 70SH LFS PF 3D Model \| Tech Support \| Check Stock Request Sample
KSC441G 70SH LFS PF 3D Model \| Tech Support \| Check Stock Request Sample
KSC441J 70SH LFS PF 3D Model \| Tech Support \| Check Stock Request Sample
KSC442G 70SH LFS PF 3D Model \| Tech Support \| Check Stock Request Sample
KSC442J 70SH LFS PF 3D Model \| Tech Support \| Check Stock Request Sample
KSC461G 70SH LFS PF 3D Model \| Tech Support \| Check Stock Request Sample
KSC461J 70SH LFS PF 3D Model \| Tech Support \| Check Stock Request Sample
KSC471G 70SH LFS PF 3D Model \| Tech Support \| Check Stock Request Sample
KSC471J 70SH LFS PF 3D Model \| Tech Support \| Check Stock Request Sample

Current Rating	Circuit	Mounting Type	Sealing	Illumination	Switch Function	Electrical Life Cycles	Actuator Type	Actuator Height off PCB, from Pins	Actuator Orientation	Termination Style	Footprint	Illumination Voltage (Nominal)	Illumination Type, Color	Operating Force	Additional Features	Packaging
50mA @ 32VDC	SPST-NO	Surface Mount	Sealed - IP67	No/None	Off-Mom	300,000	Standard	5.20mm	Top Actuated	Gull Wing	6.20mm x 6.20mm			170gf		Tape & Reel
50mA @ 32VDC	SPST-NO	Surface Mount	Sealed - IP67	No/None	Off-Mom	300,000	Standard	5.20mm	Top Actuated	J Lead	6.20mm x 6.20mm			170gf		Tape & Reel
50mA @ 32VDC	SPST-NO	Surface Mount	Sealed - IP67	No/None	Off-Mom	1,000,000	Standard	5.20mm	Top Actuated	Gull Wing	6.20mm x 6.20mm			170gf		Tape & Reel
50mA @ 32VDC	SPST-NO	Surface Mount	Sealed - IP67	No/None	Off-Mom	1,000,000	Standard	5.20mm	Top Actuated	J Lead	6.20mm x 6.20mm			170gf		Tape & Reel
50mA @ 32VDC	SPST-NO	Surface Mount	Sealed - IP67	No/None	Off-Mom	300,000	Standard	5.20mm	Top Actuated	Gull Wing	6.20mm x 6.20mm			400gf		Tape & Reel
50mA @ 32VDC	SPST-NO	Surface Mount	Sealed - IP67	No/None	Off-Mom	300,000	Standard	5.20mm	Top Actuated	J Lead	6.20mm x 6.20mm			400gf		Tape & Reel
50mA @ 32VDC	SPST-NO	Surface Mount	Sealed - IP67	No/None	Off-Mom	1,000,000	Standard	5.20mm	Top Actuated	Gull Wing	6.20mm x 6.20mm			400gf		Tape & Reel
50mA @ 32VDC	SPST-NO	Surface Mount	Sealed - IP67	No/None	Off-Mom	1,000,000	Standard	5.20mm	Top Actuated	J Lead	6.20mm x 6.20mm			400gf		Tape & Reel
50mA @ 32VDC	SPST-NO	Surface Mount	Sealed - IP67	No/None	Off-Mom	300,000	Standard	5.20mm	Top Actuated	Gull Wing	6.20mm x 6.20mm			625gf		Tape & Reel
50mA @ 32VDC	SPST-NO	Surface Mount	Sealed - IP67	No/None	Off-Mom	300,000	Standard	5.20mm	Top Actuated	J Lead	6.20mm x 6.20mm			625gf		Tape & Reel
50mA @ 32VDC	SPST-NO	Surface Mount	Sealed - IP67	No/None	Off-Mom	300,000	Standard	5.20mm	Top Actuated	Gull Wing	6.20mm x 6.20mm			400gf		Tape & Reel
50mA @ 32VDC	SPST-NO	Surface Mount	Sealed - IP67	No/None	Off-Mom	300,000	Standard	5.20mm	Top Actuated	J Lead	6.20mm x 6.20mm			400gf		Tape & Reel
