TLSM Series
6mm Compact Top Mount Endurance SMT Tactile Switch

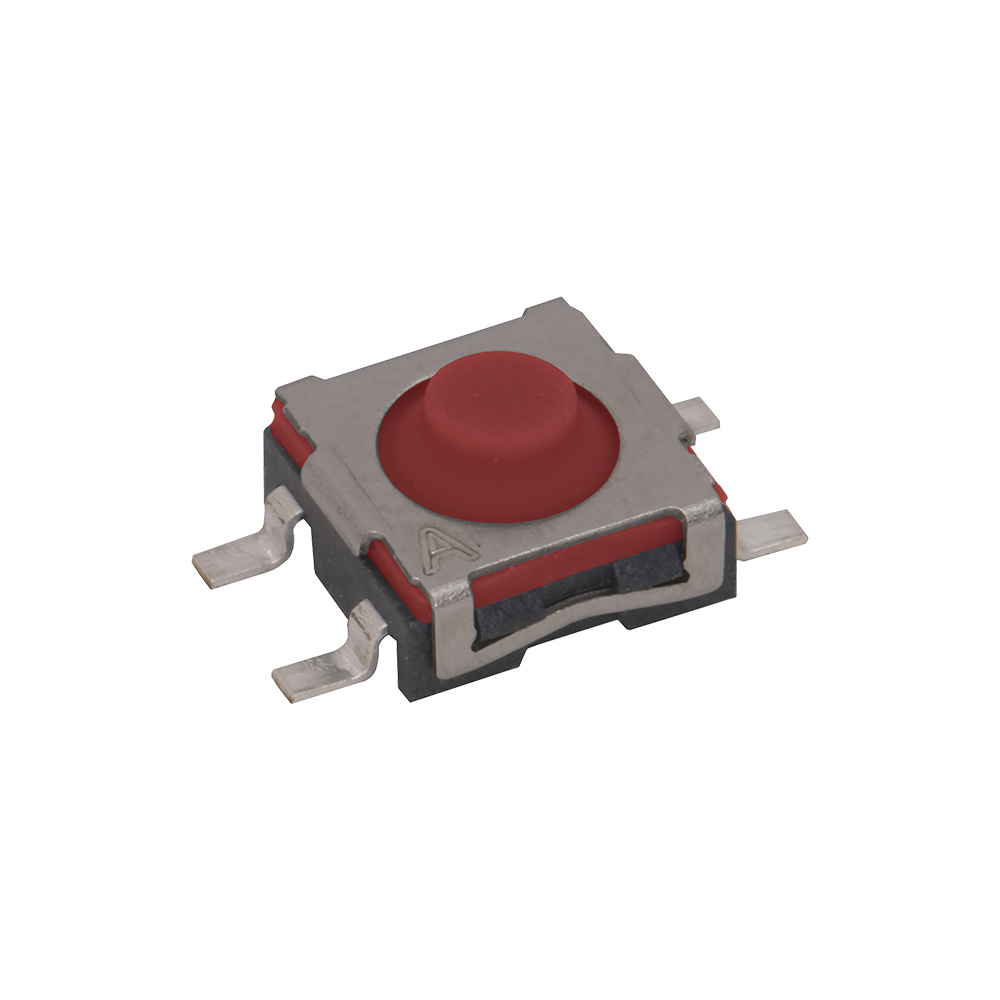

Tactile TLSM product image
Tactile TLSM product image
Tactile TLSM product image

Image shown represents the product series and may not indicate the actual part number

TLSM 6 mm compact top mount endurance SMT tact switch is a new addition to the C&K portfolio offering outstanding long life for its size with SPDT solution, meeting the needs in industrial, elevator and gaming applications. TLSM series has a 6.0 × 6.1 mm compact size and low profile at 3.45 mm product height. The switch offers 2N operating force, 0.3 mm travel and 2M long life cycles.

Features and Benefits

  • 6.0 × 6.1 mm dimension
  • Height 3.45 mm
  • Soft acuator
  • Long life - 2M cycles
  • IP54

Typical Applications

  • Industrial
  • Elevator
  • Gaming


  • Contact Rating:

    10uA to 50mA

  • Electrical Life:


  • Insulation Resistance:

    100 MΩ min.

  • Dielectric Strength:

    Withstand voltage of AC250V (50 60HZ), 10mA for 60 ± 5s

  • Operating Temperature:

    -40°C to 95°C

  • Contact Resistance:

    100mΩ max.

  • Solderability:

    Lead free reflow soldering process according with IEC61760-1

= Most Common

Current Rating Circuit Mounting Type Sealing Illumination Switch Function Electrical Life Cycles Actuator Type Actuator Height off PCB, from Pins Actuator Orientation Termination Style Footprint Illumination Voltage (Nominal) Illumination Type, Color Operating Force Additional Features Packaging
DC 16V 50mA max. SPDT-NC Surface Mount Sealed - IP54 No/None Momontary 2,000,000 Soft 3.45 mm Top Actuated Gull Wing 6.0 x 6.1 mm 2N Tape & Reel
